Nadzor Mobilni
|
|
Mobilna resenja video nadzora
UTMS / GPRS - NOVO
- RX504 Download
|
|
Aplikacije:
- Vozni
park ( automobili, brodovi, vozovi, autobusi )
- Prikriveni
video nadzor
- Nadzor
prometa
|
|
- Drzavne
agencije
- Privremeni
video nadzor
|

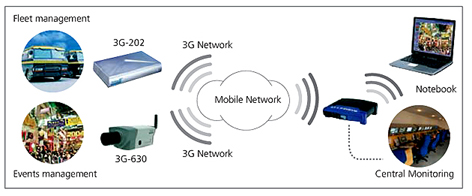

Mobilni
video transmiter ( 3G-202) i mobilna kamera (3G-630) omogucavaju
mobilni video nadzor putem 3G mreza ( UMTS ). Brza i jednostavna
instalacija ovo je idealno resenje za sve aplikacije daljinskog
video nadzora svuda gdje ne postoji fiksna mreza.
Koristeci vlastiti algoritam video kompresije TeleEye 3G oprema
daje video sliku u rezoluciji od 640 x 480 piksela što je 16
puta vise od slike koja se moze dobiti na mobilnim telefonima.
Brzina video prenosa je do 12 slika u sekundi. Moguce je
nadgledanje neogranicenog broja udaljenih lokacija istovremeno (
u grupama po 16 lokacija ), a uz Central Monitoring Station
softver to postaje profesionalno resenje mobilnog daljinskog
video nadzora i za securityfirme koje tako mogu pratiti sva
zbivanja na mobilnim udaljenim lokacijama. |
| 3G-630
Mobilna Kamera |
|
|
-
"Sve u jednom" resenje za 3G mreze
-
Rezolucija 16 puta bolja nego na mobilnim
telefonima
-
Brzina pjenosa do 12 slika u sekundi
-
Central Monitoring Station i Multi-site
Monitoring
|
|
IMAGE SENSOR
|
| Type |
1/3" CCD, interlace
|
| Min.
illumination |
1.0 Lux at F/1.2
|
| Electronic
Shutter |
(P): 1/50 - 1/100,000 second
(N): 1/60 - 1/100,000 second
on/off switchable
|
| Resoultion |
quality mode: 640x480, 320x240,
160x120 pixels
speed mode: 512x384, 256x192, 128x96 pixels
|
| BLC |
on/off switchable
|
| White
Balance |
automatic
|
|
LENS
|
| Mounting |
CS mount (C mount adaptor option)
|
|
MOBILE CONNECTION
|
| Data
Card |
Novatel U530
|
Novatel U630
|
| Network
Standard |
GPRS
|
UMTS
|
GPRS
|
UMTS
|
Data
Rate (kbps)
Downlink/Uplink |
53.6/53.6
|
384/64
|
53.6/53.6
|
384/128
|
|
NETWORK CONNECTION (optional)
|
| Network |
RJ-45, 10/100 Base-T Ethernet
|
| AUX
Port |
Telemetry Control
|
|
EVENT HANDLING
|
| Event
Type |
external alarm, video motion
detection, system failure
|
| Action
Type |
dial back, relay control
|
| External
Input |
1, NC/NO
|
|
RELAY SWITCH
|
| No.
of Channels |
1 channel, latched.momentary
|
| Max.
Rating |
24V AC, 1000mA
|
|
POWER
|
| Voltage |
12V DC
|
| Max.
Rating |
1300mA
|
|
OPERATING ENVIRONMENT
|
| Ambient
Temp |
0°C - 50°C
|
| Humidity |
< 90% (no condensation)
|
|
MECHANICAL DESIGN
|
| W
x D x H (mm) |
85 x 153 x 77.5
|
| Net
Weight (kg) |
0.9
|
| *Aktualna
brzina zavisii od servisa mobilnog operatera i prijemu
signala mobilne mreze |
|
| 3G-202
Mobilni Video Transmiter |
 |
-
Kompatibilan sa svim vrstama CCTV kamera za
prikriveno, spoljne i mobilno video nadgledanje
-
2 video i 4 alarmna ulaza
- Rezolucija
16 puta bolja nego na mobilnim telefonima
Brzina
prenosa do 12 slika u sekundi
-
Telemetrijska kontrola Speed Dome kamera
|
|
VIDEO INPUT
|
| Standard |
(P): PAL/CCIR, 625 lines, 50 fields
per second
(N): NTSC/EIA, 525 lines, 60 fields per second
composite video, 1Vp-p, BNC
|
| No.
of Channels |
2
|
| Resoultion |
quality mode: 640x480, 320x240,
160x120 pixels
speed mode: 512x384, 256x192, 128x96 pixels
|
|
MOBILE CONNECTION
|
| Data
Card |
Novatel U530
|
Novatel U630
|
| Network
Standard |
GPRS
|
UMTS
|
GPRS
|
UMTS
|
Data
Rate (kbps)
Downlink/Uplink |
53.6/53.6
|
384/64
|
53.6/53.6
|
384/128
|
|
NETWORK CONNECTION (optional)
|
| Network |
RJ-45, 10/100 Base-T Ethernet
|
| AUX
Port |
Telemetry Control
|
|
EVENT HANDLING
|
| Event
Type |
external alarm, videoloss, system
failure
|
| Action
Type |
dial back, relay control
|
| External
Input |
1, NC/NO
|
|
RELAY SWITCH
|
| No.
of Channels |
1 channel, latched.momentary
|
| Max.
Rating |
24V AC, 1000mA
|
|
POWER
|
| Voltage |
12V DC
|
| Max.
Rating |
1000mA
|
|
OPERATING ENVIRONMENT
|
| Ambient
Temp |
0°C - 50°C
|
| Humidity |
< 90% (no condensation)
|
|
MECHANICAL DESIGN
|
| W
x D x H (mm) |
254 x 210 x 45
|
| Net
Weight (kg) |
1.1
|
| *Aktualna
brzina zavisi od servisa mobilnog operatera i prijemu
signala mobilne mreze |
|
|
|
