Profesionalna DM870 Dan/Noc
pokretna PTZ kamera sa 27X optickim
zumom
Osobine
- 1/4” Sony kolor CCD
- 312X zum ; Opticki: 26X, Digitalni
: 12X
- Rezolucija : 480 (Dan) / 550 (Noc)
TVL
- Minimalna osjetljivost: 0.01 Lux
- 7 alarmnih ulaza i 2 alarmna
izlaza
- 8 zona privatnosti
- IP66
nivo zastite
- Potpuno kompatibilna sa TeleEye
uredjajima za daljinski videonadzor
- Razliciti nacini montaže: plafon,
zidna, viseca, stupna i ugaona montaza
- Tastatura za upravljanje (opcionalno)

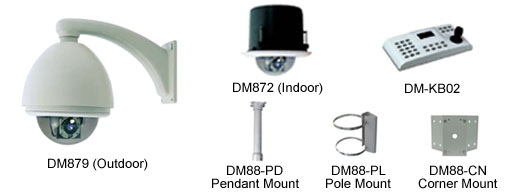

| MODEL |
DM872
(Indoor)
|
DM879
(Outdoor) |
| |
CAMERA OPTICS
|
| Scanning
System |
PAL
(625 lines, 50 fields per second)
NTSC (525 lines, 60 fields per second) |
| Image
Sensor |
1/4"
colour CCD |
| Resolution |
480
(Day) / 550 TVL (Night) |
| Minimum
Illumination |
Day:
0.07 Lux (F1.6) at 50 IRE
Night: 0.01 Lux (F1.6) at 50 IRE |
| Electronic
Sensitivity Boost |
On
/ Off |
| Video
Output Level |
1.0Vp-p
(75W , composite) |
| Video
S/N Ratio |
³50dB
(AGC off) |
| White
Balance |
Auto
/ Manual |
| Gain
Control |
Auto
/ Manual |
| Electronic
Shutter |
1/50
- 1/10,000 sec |
| Iris |
Auto
/ Manual |
| Back
Light Compensation |
On
/ Off |
| Lens |
Aperture
stop: F/1.6 - 3.8
Focal length: f = 3.4 - 91mm
Viewing angle: 2.2º - 54.2º |
| Zoom |
Optical:
26X / Digital: 12X (Total: 312X) |
| Privacy
Zone Masking |
On
/ Off, 8 masks |
| |
MECHANICAL DESIGN
|
| Panning |
Range:
360º continuous
Manual speed: 0.1º - 160º/sec
Preset speed: 360º/sec |
| Tilting |
Range:
0º - 90º
Manual speed: 0.1º - 160º/sec
Preset speed: 360º/sec |
| Control |
220
Presets, 4 Patterns, 4 Tours |
| Protocol |
TeleEye
DM2, Pelco P, Pelco D |
| Built-in
Alarm |
7
Inputs, 2 Outputs |
| |
POWER / ENVIRONMENT
|
| Weather
Proof Standard |
- |
IP66 |
| Fan |
- |
Continuous |
| Heater |
- |
Auto
Start |
| Operating
Temperature |
-40ºC
- 60ºC |
| Humidity |
0% -
95% (No condensation) |
- |
| Power
Source |
AC
24V, 50W (max) |
| Net
Weight (kg) |
5 |
5.32 |
|
|
|
