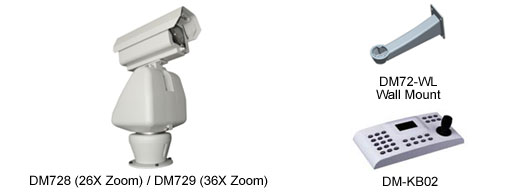

Visoko profesionalna integrisana
pozicionirajuca kamera DM720
Osobine
- Maksimalan 432X zoom ; Opticki : 36X, Digitalni : 12X
- Osetljivost: 0.01 lux
- 360° kontinualni pan i -90° do +40° tilt
- 220 preset polozaja, sa nazivima, 4 pan sekvence, 4 pan nacina
- 8 zona sa nazivima
- 8 zona privatnosti
- Auto funkcija kretanja
- On screen izbor
- Potpuno kompatibilna sa TeleEye ureddjjima daljinskog videonadzora
- Upravljacka tastatura sa joystickom (opcija)

| MODEL |
DM728
|
DM729 |
| |
CAMERA OPTICS
|
| Scanning System |
PAL
(625 lines, 50 fields per second)
NTSC (525 lines, 60 fields per second) |
| Image Sensor |
1/4"
colour CCD |
| Resolution |
480
(Day) / 550 TVL (Night) |
| Minimum
Illumination |
Day: 0.07 Lux
(F1.6) at 50 IRE
Night: 0.01 Lux (F1.6) at 50 IRE |
Day: 0.1 Lux (F1.6)
at 50 IRE
Night: 0.01 Lux (F1.6) at 50 IRE |
| Video Output Level |
1.0Vp-p
(75W , composite) |
| Video S/N Ratio |
³50dB
(AGC off) |
| White Balance |
Auto /
Manual |
| Gain Control |
Auto /
Manual |
| Fcous |
Auto /
Manual |
| Electronic Shutter |
1/50 - 1/10,000 sec |
1/1 - 1/10,000 sec |
| Iris |
Auto /
Manual |
| Back Light
Compensation |
On /
Off |
| Lens |
Viewing angle: 2.2º
- 54.2º |
Viewing angle: 1.7º
- 57.8º |
| Zoom |
Optical: 26X /
Digital: 12X (Total: 312X) |
Optical: 36X /
Digital: 12X (Total: 432X) |
| Privacy Zone
Masking |
On /
Off, 8 masks |
| |
MECHANICAL DESIGN
|
| Panning |
Range:
360º continuous
Manual speed: 0.1º - 70º/sec
Preset speed: 140º/sec |
| Tilting |
Range:
-90º - 40º
Manual speed: 0.1º - 50º/sec
Preset speed: 140º/sec |
| Control |
220
Presets, 4 Patterns, 4 sequences, 4 Auto pan |
| Protocol |
TeleEye
DM2, Pelco P, Pelco D |
| |
POWER / ENVIRONMENT
|
| Weather Proof
Standard |
IP66 |
| Fan |
Continuous |
| Heater |
Auto
Start |
| Operating
Temperature |
-40ºC
- 60ºC |
| Power Source |
AC 24V,
60W (max) |
| Net Weight (kg) |
9.6 |
|
